Product Description
1976-1978 RD250 / RD400 Wire Harness
- Yamaha RD400 Wiring Harness
- Reproduction wiring harness for the Yamaha RD400 (1976-1977).
- All wiring colors and connectors are the same as stock and is a direct fit replacement, but varies from original harness in terms of materials used for loom, color of plastic connectors, and other minor differences, etc. Note: 76/77 use the same harness.
NOTE: Some of the components on the new harness are different then original because not everything is available. We tell them this in the description.

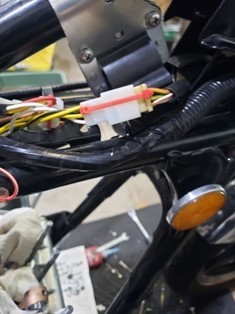

- The bike side of the connector in your picture is non latching, the connector on the new harness is latching. So the customer can swap out the old connector for a latching one or plug them together as is and use a zip tie. See picture.

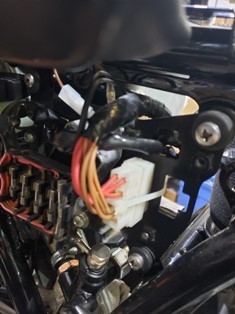

- There’s one other connection like that on the fuse panel, the large connector block is different from the original and has to be secured with a zip tie. See picture.
- There isn’t any chocolate or dark green for the signal circuits anymore so the new harness uses brown with a tracer and different shade of green.
- Most of the differences are obvious and nothing that keeps the harness from working. We have a 400 build here now that has one and all circuits work fine, we’ve used and sold them for a long time. Typical repop part, works fine but some differences.
